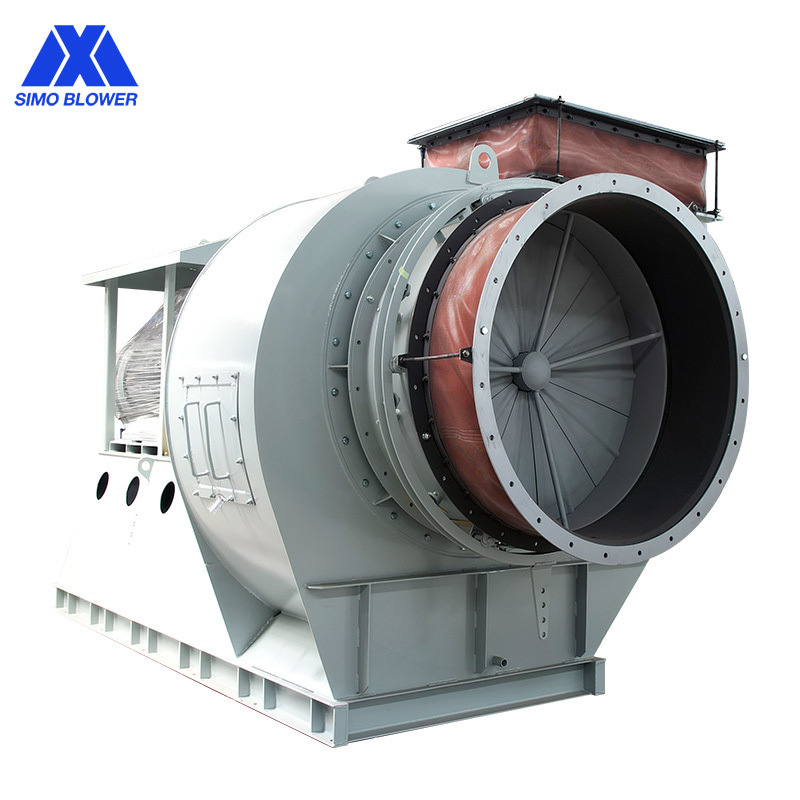

15-132kw High Temperature Kiln Systems Centrifugal Fan

Name: 15-132kw High Temperature Kiln Systems Centrifugal Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: Воздуходувка 4-73 SIMO
Price: 4,000.00 USD
Availability: InStock

Детали продукта:

Место происхождения:	Хэнань Китай
Фирменное наименование:	SIMO
Сертификация:	CE, ISO9001:2008,TUV
Номер модели:	Воздуходувка 4-73 SIMO

Подробная информация

Место происхождения:

Хэнань Китай

Фирменное наименование:

SIMO

Сертификация:

CE, ISO9001:2008,TUV

Номер модели:

Воздуходувка 4-73 SIMO

Модель №:

4-73

Источник:

КИТАЙ

Диапазон потока:

25661-104600 м³/ч

Диапазон давления:

797-4777PA

Напряжение:

380V/415V/440V/660V/6KV/10KV

Источник питания:

Трёхфазный двигатель переменного тока

Тип подшипника:

Свертывая подшипник

OEM -сервис:

Предоставлять

Рабочее колесо:

не износоустойчивые лезвия колеса

Испытание турбинки:

Динамический blancing регулировать

Послепродажная служба предоставлена:

Полевая установка, ввода в эксплуатацию и обучение

Гарантия:

1 год

Выделить:

High Light

Выделить:

15-132kw kiln centrifugal fan

high temperature boiler fan

industrial kiln systems fan

Trading Information

Количество мин заказа:

1 набор

Цена:

Подлежит обсуждению

Упаковывая детали:

Упаковка случая экспорта деревянная, стальная упаковка паллета

Время доставки:

30-35 дней

Условия оплаты:

T/T, L/C, условие оплаты могуще быть предметом переговоров

Поставка способности:

500 комплектов в месяц

Характер продукции

15-132kw High Temperature Kiln Systems Centrifugal Fan

Engineered for the extreme demands of industrial kilns, our high-temperature centrifugal fans deliver unwavering performance in the 15-132kW power range. Specifically designed to withstand intense, continuous heat, these robust fans ensure efficient and reliable airflow for critical processes such as drying, curing, and combustion. They are built with specialized materials and thermal compensation designs to prevent deformation and maintain structural integrity under high thermal stress. By providing precise air movement and temperature management, our fans are essential for optimizing kiln efficiency, product quality, and overall operational safety. This proven reliability makes them the preferred choice for heavy-duty industrial heating applications.

Product Features

It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.
The fan blade placement angle is optimized, more wear-resistant and longer service life.
The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.
For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users' investment and maintenance.
The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
There are a variety of accessories to choose from.

Product Parameters

The following datas are only part of performance of our product. If you can't find Centrifugal Blower the datas you need, please send us your performance requirements. we will provide you customized Centrifugal Fan design service.

Application	Temperature \| normal temperature or high temperature.
Air composition	Transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials
Performance	Impeller diameter \| 730 ~ 1450 \| r/min Speed of mainshaft \| 797 ~ 4777 \| Pa Pressure range \| 25661 ~ 104600 \| m3/h Flow range \| 15 ~ 132 \| kW
Structure	Blade \| Backward Impeller support \| SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain	Direct, Coupling, V-belt \| Can assign
Lubrication	Oil bath lubrication
Bearing cooling	Air cooling, Water cooling, Oil cooling
System configuration	Motor \| ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand... \| Can assign Impeller \| Q235, Q345, SS304, SS316, HG785, DB685... Casing, Air inlet cone, \| Q235, Q345, SS304, SS316, HG785, DB685... Air inlet damper Main shaft \| 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... Bearing \| FAG, SKF, NSK, ZWZ...
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank etc
